objectifs à monture c
Autres matériels de vision industrielle :
Les objectifs à monture C sont compatibles avec toutes les caméras de vision industrielle équipées d'une monture C.
L'optique est un élément important du système de vision industrielle et sa fonction principale est de projeter l'image des objets sur la surface photosensible du capteur d'image. La qualité des lentilles influe directement sur la performance globale du système de vision comme la résolution, le contraste, la profondeur de champ, etc.
Elle joue donc un rôle crucial dans la qualité de l'image. Par rapport à une optique ordinaire, l'objectif de vision industrielle a une plus haute définition, une faible distorsion, une transmission spectrale plus importante et une meilleure capacité de correction d'aberration.
Elle est utilisée dans l'inspection de surface, la logistique continue, les systèmes de transport intelligents (STI), la lecture de texte, le tri des colis, le contrôle dimensionnel (2D / 3D), l'imagerie médicale, les analyses biologiques, l'aérospatiale, la défense nationale et beaucoup d'autres domaines.
Pour des optiques spécifiques, comme par exemple des objectifs macros, zooms, linescan monture F, M12, etc..., cliquez ici.
objectifs à monture C / CS de The Imaging Source
optiques 5 Mégapixels monture C
| Product Code | Format | Mount | Focal length | Iris range |
|---|---|---|---|---|
| TCSL 0418 5MP | 1/2.5" | CS | 4 | 1.8 |
| TCL 0616 5MP | 1/1.8" | C | 6 | 1.6-16 |
| TCSL 0618 5MP | 1/2.5" | CS | 6 | 1.8 |
| TCL 0814 5MP | 1/1.8" | C | 8 | 1.4-16 |
| TCSL 0818 5MP | 1/2.5" | CS | 8 | 1.8 |
| TCL 1216 5MP | 2/3" | C | 12 | 1.6-16 |
| TCL 1616 5MP | 2/3" | C | 16 | 1.6-16 |
| TCL 2518 5MP | 2/3" | C | 25 | 1.8-16 |
| TCL 3520 5MP | 2/3" | C | 35 | 2-16 |
| TCL 5026 5MP | 2/3" | C | 50 | 2.6-32 |
| TCL 7528 5MP | 1 | C | 75 | 2.8-32 |
optiques compactes monture c
| Product Code | Format | Mount | Focal length | Iris range |
|---|---|---|---|---|
| TPL 0420 6MP | 1/1.8" | C | 4 | 2 - 0 |
| TPL 0620 6MP | 1/1.8" | C | 6 | 2 - 0 |
| TPL 0820 7MP | 1/1.8" | C | 8 | 2 - 0 |
| TPL 1220 8MP | 1/1.8" | C | 12 | 2 - 0 |
| TPL 1620 9MP | 1/1.8" | C | 16 | 2 - 0 |
| TPL 2520 10MP | 1/1.8" | C | 25 | 2 - 0 |
| TPL 5028 10MP | 1/1.8" | C | 50 | 2.8 - 0 |
Plus d'informations sur https://www.theimagingsource.com/products/optics/lenses/tis-5-mp/
objectifs à monture C Hikrobotics
| Model | Resolution | Focal lenght | Aperture | Description |
|---|---|---|---|---|

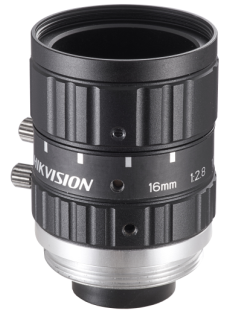

| 1/1.8" FA Lens | ||||
| MVL-HF0628M-6MP | 6 MP | 6mm | F2.8 |
Angle( H x V ): 62.8°x 44.5° Distortion: -1.50% Minimum Object Distance: 0.05m C-Mount |
| MVL-HF0828M-6MP | 6 MP | 8mm | F2.8 |
Angle( H x V ): 49.3°x 34.0° Distortion: -0.96% Minimum Object Distance: 0.05m C-Mount |
| MVL-HF1228M-6MP | 6 MP | 12mm | F2.8 |
Angle( H x V ): 34.4°x 23.4° Distortion: -0.38% Minimum Object Distance: 0.1m C-Mount |
| MVL-HF1628M-6MP | 6 MP | 16mm | F2.8 |
Angle( H x V ): 25.7°x 17.5° Distortion: -0.08% Minimum Object Distance: 0.1m C-Mount |
| MVL-HF2528M-6MP | 6 MP | 25mm | F2.8 |
Angle( H x V ): 16.35°x 10.96° Distortion: -0.02% Minimum Object Distance: 0.15m C-Mount |
| MVL-HF3528M-6MP | 6 MP | 35mm | F2.8 |
Angle( H x V ): 11.3°x 7.6° Distortion: -0.02% Minimum Object Distance: 0.18m C-Mount |
| MVL-HF5028M-6MP | 6 MP | 50mm | F2.8 |
Angle( H x V ): 8°x 5.4° Distortion: 0.11% Minimum Object Distance: 0.3m C-Mount |

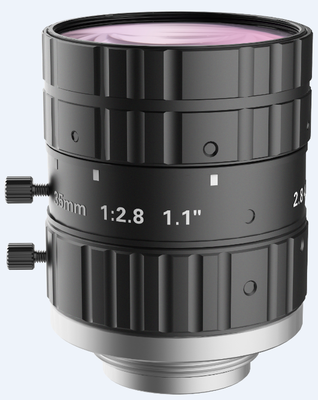

| 1" and 1.1" FA Lens | ||||
| MVL-KF0818M-12MP | 12 MP, 1" | 8mm | F1.8 |
Angle( H x V ): 77.16°x 61.3° Distortion: -4.12% Minimum Object Distance: 0.3m C-Mount |
| MVL-KF1228M-12MP | 12 MP, 1.1" | 12mm | F2.8 |
Angle( H x V ): 59.8°x 46.2° Distortion: -1.79% Minimum Object Distance: 0.1m C-Mount |
| MVL-KF1628M-12MP | 12 MP, 1.1" | 16mm | F2.8 |
Angle( H x V ): 44.9°x 33.9° Distortion: -1.30% Minimum Object Distance: 0.08m C-Mount |
| MVL-KF2528M-12MP | 12 MP, 1.1" | 25mm | F2.8 |
Angle( H x V ): 29.6°x 22.1° Distortion: 0.40% Minimum Object Distance: 0.15m C-Mount |
| MVL-KF3528M-12MP | 12 MP, 1.1" | 35mm | F2.8 |
Angle( H x V ): 21.4°x 15.9° Distortion: -0.21% Minimum Distance: 0.2m C-Mount |
| MVL-KF5028M-12MP | 12 MP, 1.1" | 50mm | F2.8 |
Angle( H x V ): 15.1°x 11.2° Distortion: -0.05% Minimum Object Distance: 0.3m C-Mount |

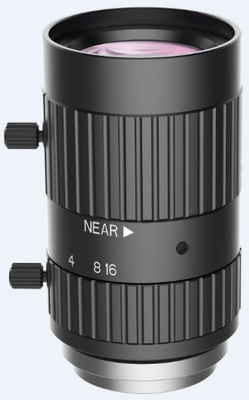

| 2/3" FA Lens | ||||
| MVL-MF0828M-8MP | 8 MP | 8mm | F2.8 |
Angle( H x V ): 54.97°x 47.06° Distortion: -1.51% Minimum Object Distance: 0.1m C-Mount |
| MVL-MF1228M-8MP | 8 MP | 12mm | F2.8 |
Angle( H x V ): 37.88°x 32.03° Distortion: -1.14% Minimum Object Distance: 0.1m C-Mount |
| MVL-MF1628M-8MP | 8 MP | 16mm | F2.8 |
Angle( H x V ): 28.94°x 24.38° Distortion: -0.20% Minimum Object Distance: 0.1m C-Mount |
| MVL-MF2528M-8MP | 8 MP | 25mm | F2.8 |
Angle( H x V ): 17.79°x 14.93° Distortion: -0.10% Minimum Object Distance: 0.1m C-Mount |
| MVL-MF3528M-8MP | 8 MP | 35mm | F2.8 |
Angle( H x V ): 11.67°x 9.77° Distortion: 0.08% Minimum Object Distance: 0.15m C-Mount |
| MVL-MF5028M-8MP | 8 MP | 50mm | F2.8 |
Angle( H x V ): 8.81°x 7.38° Distortion: -0.05% Minimum Object Distance: 0.4m C-Mount |
| 4/3" FA Lens | ||||
| SA1220M-10MP | 10 MP | 12mm | F2 |
Angle( H x V ): 75.5°x 61.1° Distortion: -2.4% Minimum Object Distance: 0.15m C-Mount |
| SA1620M-10MP | 10 MP | 16mm | F2 |
Angle( H x V ): 60.9°x 47.3° Distortion: -2.81% Minimum Object Distance: 0.1m C-Mount |
| SA2520M-10MP | 10 MP | 25mm | F2 |
Angle( H x V ): 40.6°x 31.0° Distortion: -0.66% Minimum Object Distance:0.15m C-Mount |
| SA3520M-10MP | 10 MP | 35mm | F2 |
Angle( H x V ): 29.6°x 22.4° Distortion: -0.56% Minimum Object Distance: 0.2m C-Mount |
| SA5020M-10MP | 10 MP | 50mm | F2 |
Angle( H x V ): 20.9°x 15.7° Distortion: -0.14% Minimum Object Distance: 0.3m C-Mount |
| SA8520M-10MP | 10 MP | 85mm | F2 |
Angle( H x V ): 12.09°x 9.28° Distortion: 0.04% Minimum Object Distance: 1.2m C-Mount |
Plus d'informations sur le site de Hikrobotics : http://en.hikrobotics.com/vision/visionlist.htm
